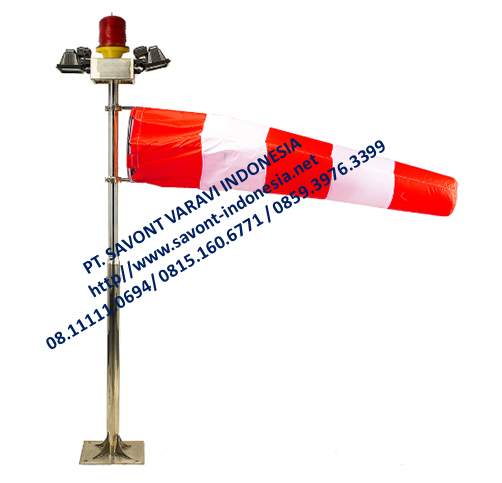

GS-HP/W Wind Cone adopts SUS304 stainless steel ,The top with wind cone floodlight and low intensity obstruction light ,service life is above 3years.
This product is used to provide visual surface wind direction and velocity information to pilots in helicopters over the final approach and takeoff areas. used as airport landing indicator. According to ICAO requirement, every helipad area must have at least one wind cone. Installation position must be not interfered by around object and airflow formed by helipad wing and make pilot recognize wind cone at 200 meters clearly. Product standard is compliance with requirement FAA, AC150/5345-27C,L-806 and ICAO.
Attention/ Usage Tips
- Please don’t input the wrong supply voltage.
- Do not make any short circuit for the controller, lest the short circuit will blow the fuse.
- Donot open it if the device is out of operation, in order not to be hurt by the internal high pressure.
- Afterfinished the installation, the personnel must check whether the screw spikes are tightened.
- Non-professional workers cannot do the device maintenance, so as not to expand the error and be hurt.
- Airport
- Heliport
- Gas station
- Chemistry factory
- Drilling platform
- Ships
| Name | Parameter | Name | Parameter |
| Optional Supply Voltage | DC12V, AC120V, AC220V | Lighting Source | LED |
| Supply Voltage | Optional | Light Source Type of Obstruction Light | LED |
| Power Consumption | / | Height | Customized |
| Ambient Temperature | -40℃～85℃ | Chassis Installation Size | 350mm×M20×6PCS |
| Ambient Humidity | ≤95% | Diameter | Customized |
| Altitude | ≤4500m | Maximum Design Wind Speed | 260Km/h |
| IP Protection | IP65 | Quantity of Flood Light | Optional |
| Mast Material | SUS 304 stainless steel | Wind Sock Material | PVC |
